* Product images may differ from the actual product

More Views

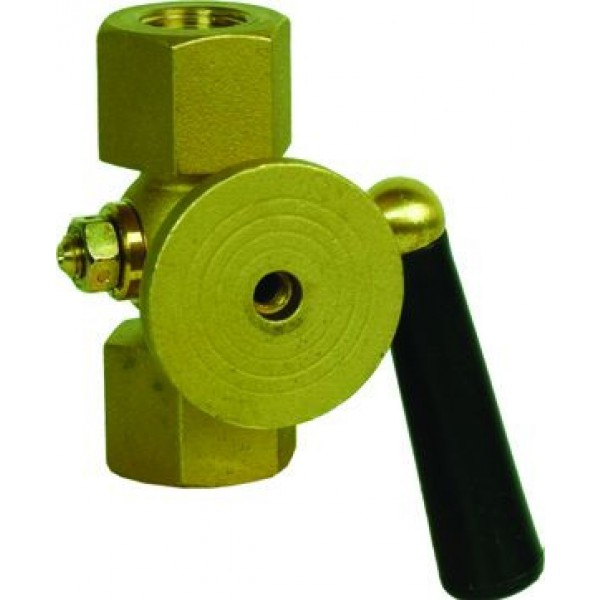

Pressure gauge valve Econ - Fig. 344 - 3/8" / PN 25

Quick Overview

Brass pressure gauge stopcock with BSP thread and vent hole. Suitable for pressure gauges with sealing ring in accordance with DIN EN 837-1. Conducted according to DIN 16 261-A. Suitable for liquids, gases and vapors.

Be the first to review this product

https://www.econosto.nl/product-sheet/149088

Details

Brass pressure gauge stopcock with BSP thread and vent hole. Suitable for pressure gauges with sealing ring in accordance with DIN EN 837-1. Conducted according to DIN 16 261-A. Suitable for liquids, gases and vapors.

Pressure and Temp Range

G3/8 6 -10 until +50
G1/2 25 -10 until +50

Dimensions

Extra information

Additional Information

Weight (g.) 360
Dimensions (LxWxH) 100 x 50 x MM
Part number SY0034403/8CACA
CBS-number 84818099
Manufacturer Econ
Type 344
Body material Brass
Connection size 3/8" (10)
Connection Gas inner thread cylindrical (BSPP)
Connection 2 Gas inner thread cylindrical (BSPP)
Pressure rating PN 25
